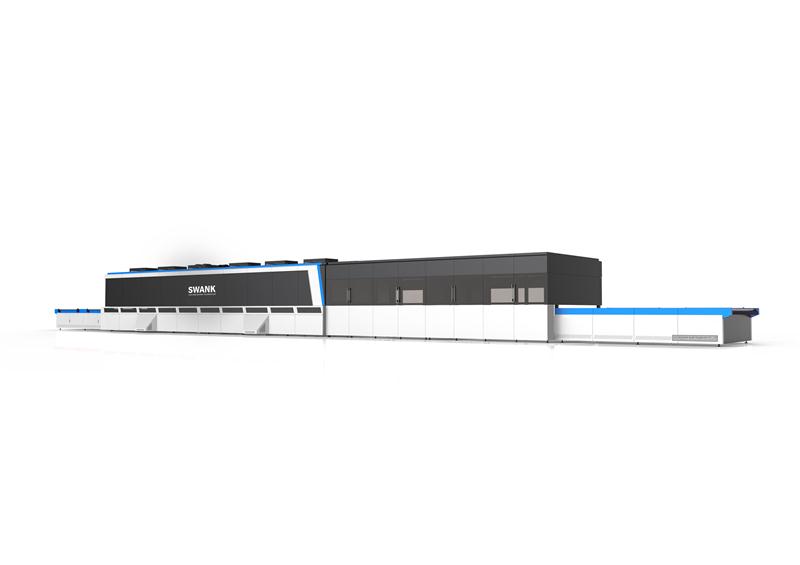

HG Forced Convection Flat Glass Tempering Furnace

Product brief introduction：HG-TAQ series forced convection flat glass tempering furnace Suitable for processing float glass, patterned glass, coated glass, low-E glass, etc. Mainly used for flat building glass, home appliance glass, furniture glass, decorative glass…etc.

Detail
Technical feature

HG-TAQ series forced convection flat glass tempering furnace Suitable for processing float glass, patterned glass, coated glass, low-E glass, etc. Mainly used for flat building glass, home appliance glass, furniture glass, decorative glass…etc. Especially suitable for the processing of high-grade coated glass, hard-soft low-e, E value can up to≥0.02.

Main technical features:

☆ Top installed special heat-proof convection fan; Convection system is with top quality stainless steel, heat-proof and antioxidant, ensure excellent glass quality.

☆ Intelligent operation program, reasonable human-computer interface.

☆ Temperature-control module supply precise and accurate data, fast response.

☆ Superior heating element and insulating material can effectively reduce energy consumption.

☆ Remote diagnosis function can help customers deal with equipment problems quickly.

Main parameters：

Model	Max size (mm)	Min size (mm)	Thickness (mm)	Capacity (m²/hour)	Installed Power （KVA）
HG-TAQ1825	1800x2500	100x250	3-19	81	315
HG-TAQ2030	2000x3000	100x250	4-19	108	400
HG-TAQ2036	2000x3660	100x250	4-19	131	500
HG-TAQ2436	2440x3660	100x300	4-25	160	630
HG-TAQ2442	2440x4200	100x300	4-25	186	630
HG-TAQ2450	2440x5000	100x300	4-25	222	800
HG-TAQ2460	2440x6000	100x300	4-25	266	1000
HG-TAQ2842	2850x4200	200x350	5-25	221	800
HG-TAQ2860	2850x6000	200x350	5-25	316	1000
HG-TAQ3050	3000x5000	200x400	5-25	277	1000
HG-TAQ3060	3000x6000	200x400	5-25	327	1250
HG-TAQ3350	3300x5000	200x400	5-25	297	1000
HG-TAQ3360	3300x6000	200x400	5-25	335	1250
HG-TAQ3380	3300x8000	200x400	5-25	469	1600

Notice:

The above data is calculated by 5mm clear glass and 100% loading rate. Actual data will be subject to glass types, specifications and loading rate.
Above is general size list as reference, other models can be designed and supplied according to exact requirement.
