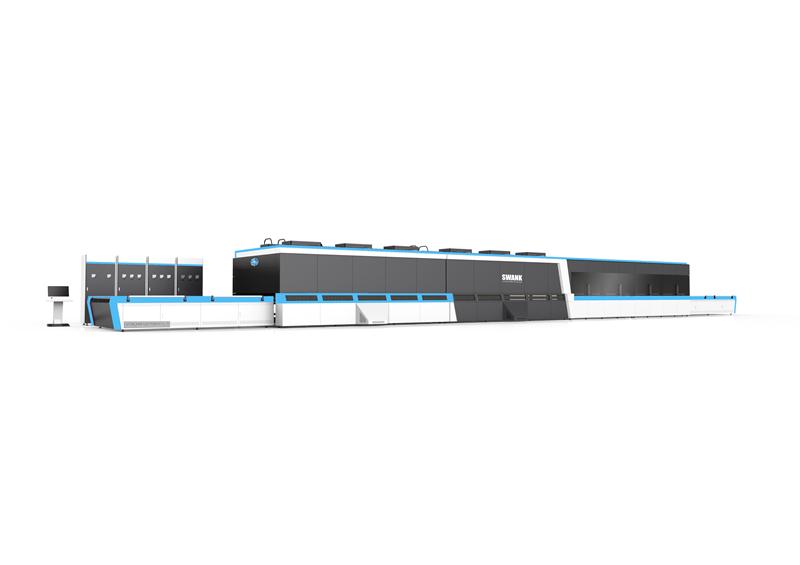

HG Forced Convection Double Chamber Tempering Furnace

Product brief introduction：HG-TASQ type of glass double-chamber tempering furnace has more figures such as shorter heating time, higher efficient blower, bigger productivity, and glass quality more steady. Glass types can tempered: float glass, tint glass, coated glass, and low-E

Detail
Technical feature

HG-TASQ type of glass double-chamber tempering furnace has more figures such as shorter heating time, higher efficient blower, bigger productivity, and glass quality more steady.

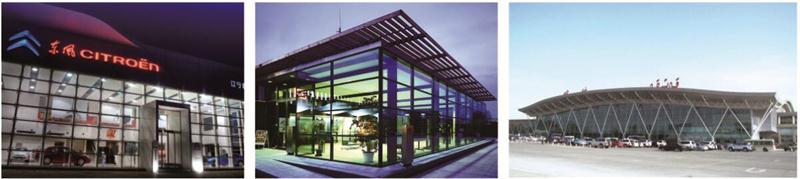

Glass types can tempered: float glass, tint glass, coated glass, and low-E glass…etc. It mainly used for building glass, home appliance glass, furniture glass, decorative glass, solar glass…etc.

Glass quality fully meets standard requirements of GB9963. GN9656, ECER-43, ANSIZ97.1

Main technical features:

☆ Double-chamber type machine have shorter heating time, higher efficient blower, bigger productivity, and glass quality more steady.

☆ Top quality heat-insulating material, special laying process, heat-keeping technology, make best heating result, and minimum heating leakage. It can effectively reduce energy consumption

☆ Top installed special heat-proof convection fan; Convection system is with top quality stainless steel, heat-proof and antioxidant, ensure excellent glass quality.

☆ Intelligent operation program, reasonable human-computer interface.

☆ Remote diagnosis function can help customers deal with equipment problems quickly.

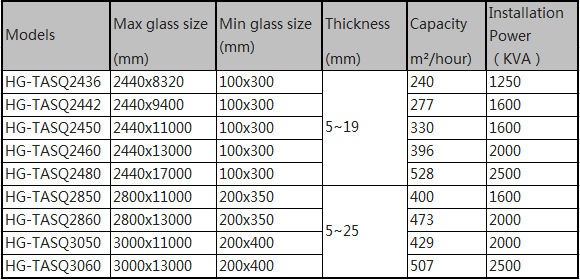

Main Parameters：

Note:
The above data is calculated by 5mm clear glass and 100% loading rate. Actual data will be subject to glass types, specifications and loading rate.
Above is general size list as reference, other models can be designed and supplied according to exact requirement.
