HG-JCX Automatic Flat Glass Laminating Line

Product brief introduction：HG-JCX series flat glass laminating line is a special laminating line developed by our company. It is mainly used in producing big flat laminated glass for architectures, bullet-proof glass etc.

Detail
Technical feature

HG-JCX series flat glass laminating line is a special laminating line developed by our company. It is mainly used in producing big flat laminated glass for architectures, bullet-proof glass etc. This equipment and laminated glass quality satisfied china standard (GB/T9962-1999).

Main technical features:
☆ The whole production line adopts PLC control system and operation by touch screen.

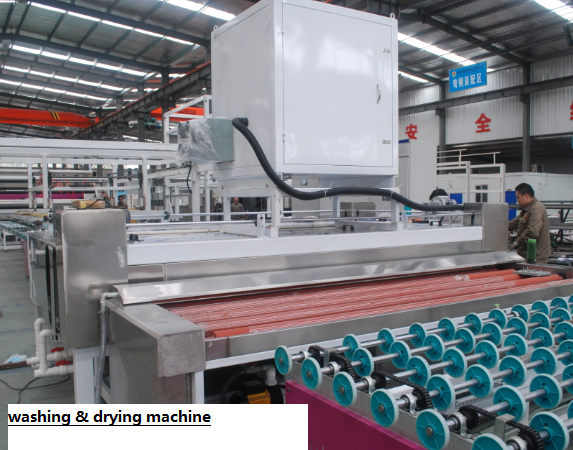

☆ The washing & drying machine is the key machines of the production line, with digital display. It can clean soft LOW-E glass and coated glass but will not hurt the coated surface.

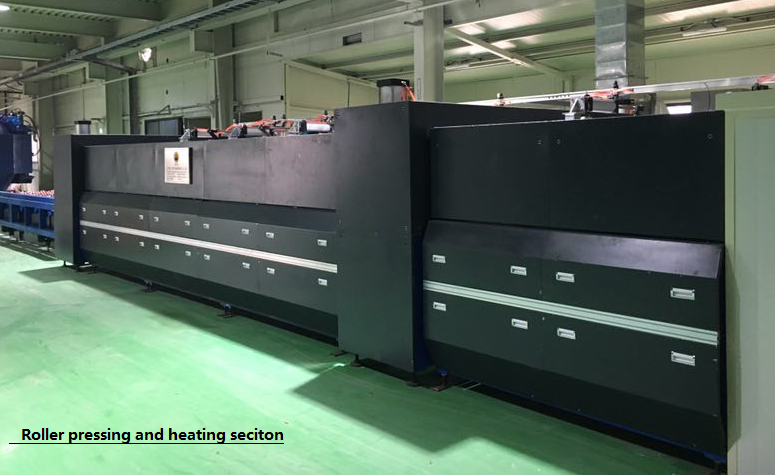

☆ We installed forced convection heating devices on the upper cabinet, to improve energy efficiency, the glass is heated evenly, improve production efficiency.

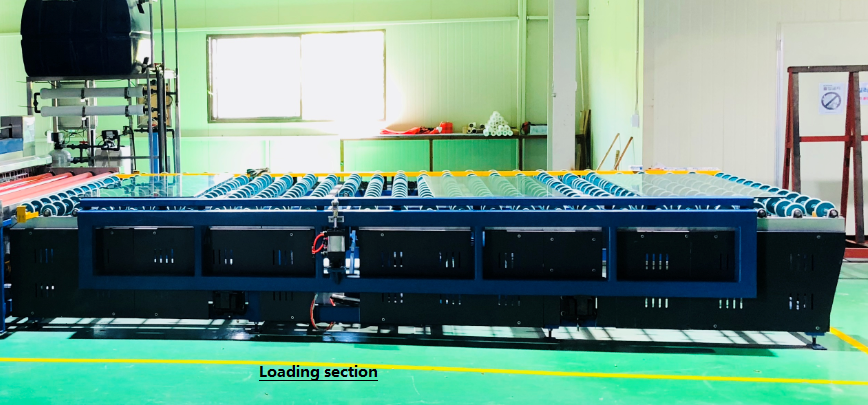

☆ Loading & unloading table with tilting frame, it is convenient to loading and unloading glass sheet.

Model	Max glass size(mm)	Installed power(KVA)	Equipment size LWH(mm)	Remark
HG-JCX2436	2400x3600	128	25810x8000x4000	The width and height of the equipment include the laminating chamber.
HG-JCX2542	2500x4200	145	34310x8000x4000
HG-JXC2550	2500x5000	166	39110x8000x4000
HG-JCX2560	2500x5000	183	45110x8000x4000
HG-JCX3042	3000x4200	175	34310x8500x4000
HG-JCX3060	3000x6000	228	45110x8500x4000

Notice:
Above is general size list as reference, other models can be designed and supplied according to exact requirement.
