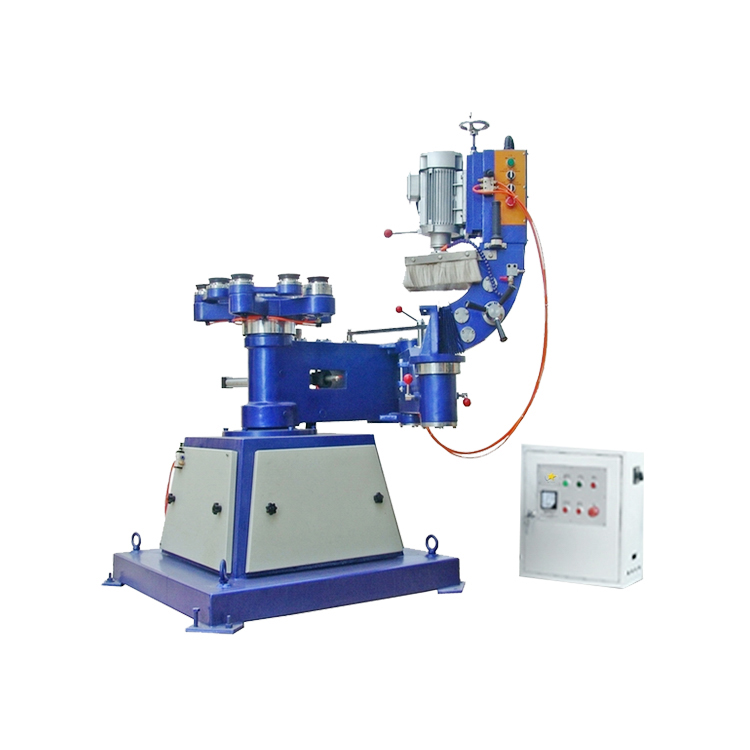

Shaped Glass Grinding Machine

Product brief introduction：Shaped Glass Grinding Machine is suitable for processing the edge of round shape , oval shape & other irregular shape of glass sheet with various size and thickness

Detail
Technical feature

Shaped Glass Grinding Machinery

Shaped Glass Grinding Machine is suitable for processing the edge of round shape , oval shape & other irregular shape of glass sheet with various size and thickness

1. Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle,

oval and irregular flat glass .

2. Adopt air cylinder to grind simple shape glass semi-automatically

3. When grinding the pencil edging, install three grinders to process coarse grinding, fine grinding and polishing .

4. When grinding the beveling, adopt bowl shaped grinding wheels, adjustment the bevel angle by head tilted back the grinders .

Technical parameters:

Diameter of rotary glass	100~2000mm
Beveling degree	0~15°
Speed dial	0.5-2.5r/min
Disk speed	1.3-6.5r/min
Bevelling abrasive	wheels: φ150
Abrasive wheels	φ100、φ150、φ175
Glass turning dia of bevelling grinding	φ200~φ2000
The biggest bevelling width	35mm
Glass thickness	3-25mm
Total power	2.5KW
