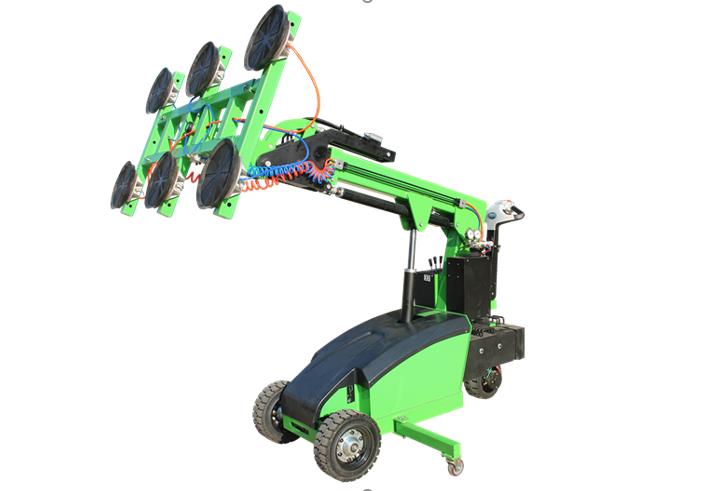

Removable Vacuum Glass Lifter
Product brief introduction：
Removable Vacuum Glass Lifter
Vacuum lifter series are specially design for handling different kinds of heavy plate, board
and glass, useful for installing steel board, glass wall, moving such as
granite, marble. Easily handle lifting, moving and rotating with vacuum suction
caps and powerful drive system.
Product parameters:
|
Model Type |
VGL-LD-350 |
GL-LD-600 |
|
Loading Capacity |
350kg (retract)/175kg(extend) |
600kg (retract)/300kg(extend) |
|
Lifting Height |
3500mm |
3500mm |
|
Battery |
2x12V/100AH |
2x12V/120A |
|
Controller |
VST224-15 |
CP2207A-5102 |
|
Drive motor |
24V/600W |
24V/900W |
|
Hydraulic power |
24V/2000W/5L |
24V/2000W/5L |
|
Cap Diameter |
Ø250mm/300mm |
Ø250mm/300mm |
|
QTY of Caps (custom) |
4pcs |
6pcs |
