The solution to the upper of furnace lifting unevenness

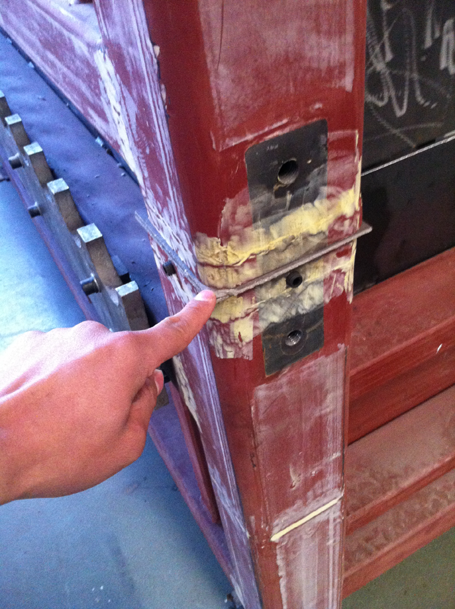

1.Look at picture, please lift or fall furnace, in order to the upper furnace almost touch the lower (around 1cm), record the difference of 4 corners height.

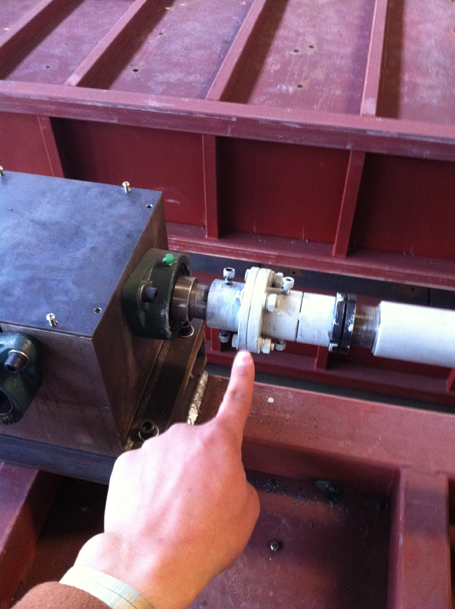

2.Because of the furnace is heavy, adjust the lowest corner’s height the same as the other three corners. Please remove the transmission shaft of the lowest corner and put the shaft to another place for preventing peple fall down.

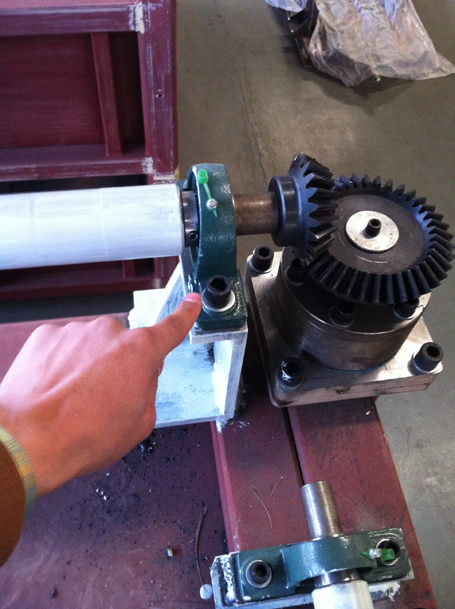

3.One people use pipe wrench to turn bevel gear (the location finger point), the other people measure height at the same time until 4 corner have same height. After adjusting, reassemble transmission shaft.

4.Adjust another corners use the above solutions. 4 corner will have the same height.
